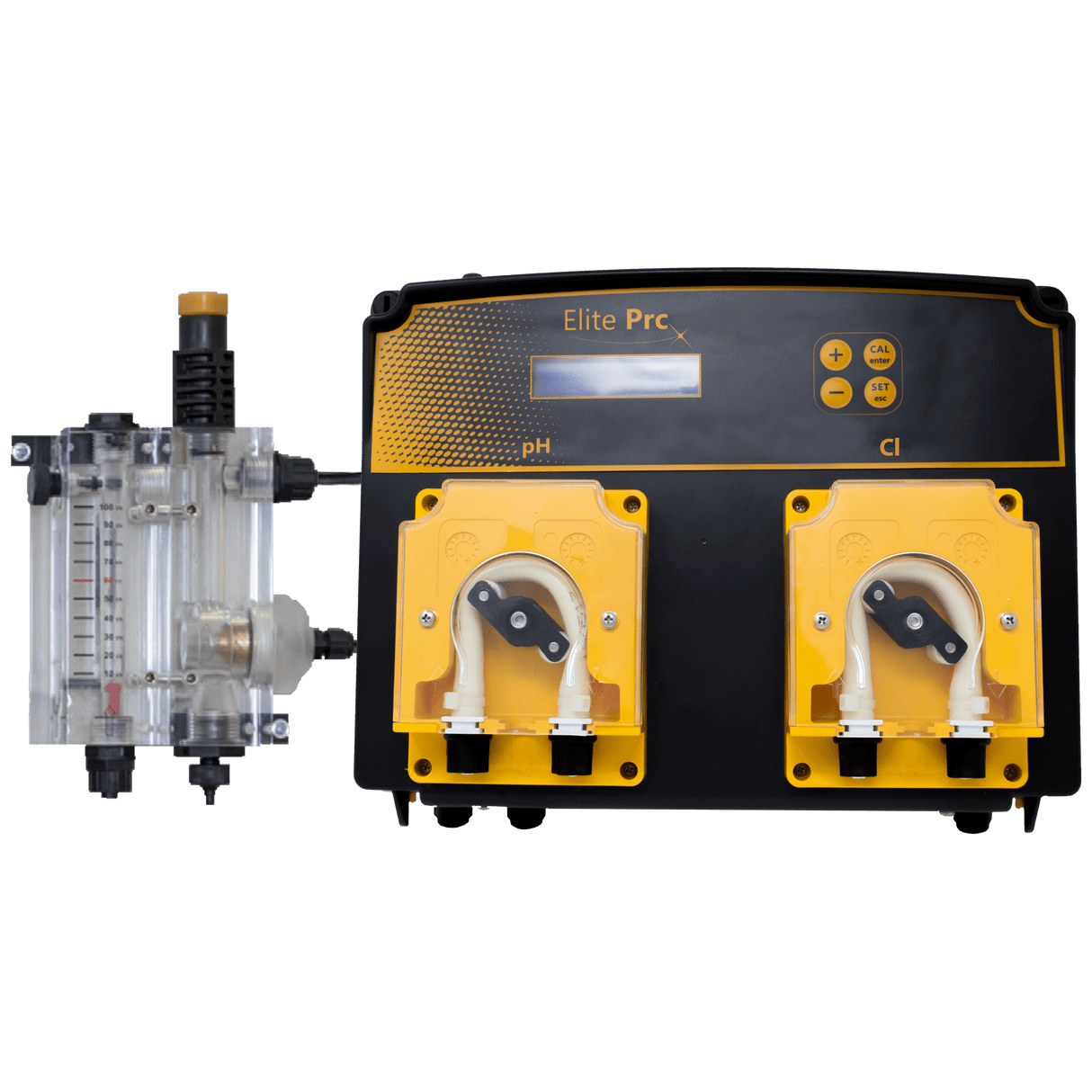

ELITE PRC SWIMMING POOL CONTROLLER, 5L/HR PUMPS, PH & FAC

Injecta Elite.PRC - constant and proportional dosing system for swimming pools, water treatment, pH and chlorine dosing for swimming pools

Digital display
Dosing rate control set by software
Tank level control
Proportional dosing from pulse water meter or analog signal (4 ÷ 20mA)
Input signal voltage 240 VAC (electrical signal from circulation pumps)
Remote alarm via relay (dry contact)
Parameter setting via menu
Electrical power 8 W
Pump capacity - 5.0 l / h
Maximum pool volume - 150m3
Maximum operating temperature - 45C
Maximum operating pressure - 1.5 bar

5.0 L/HR pump versions Indoor from 50m³ to 350m³.  Outdoor from 50m³ to 300m³

Accessories Included:  Probes, Probe Holder, Buffer Solutions, Pipework Saddle, Cleaning Brush, Filter & Valve, Suction Weights & Tubes, Injection Valves, PVC Delivery Tubes

Care must be taken to the right sized controller is selected for the application.  Pumps will burn out if used in applications bigger than listed above or where continuous operation is required.  For these applications, we have other controllers more suitable.

Dose pumps are designed to be used with standard pool water treatment chemistry:

“Pool Chlorine” - Sodium Hypochlorite 15%
“Pool Acid” - Hydrochloric Acid 25%

No warranty applies to applications where different or stronger concentrations have been used.

Product Warranty, 1 year.
