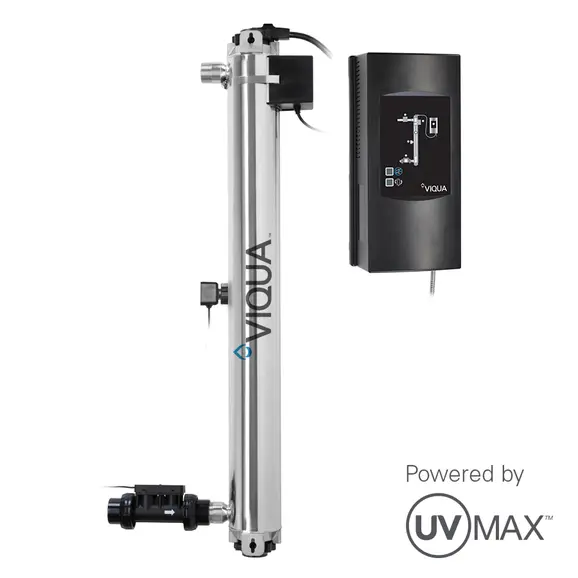

VIQUA PRO30 UV SYSTEM, NSF 55 CLASS A CERTIFICATION
The VIQUA Pro Series offers a compact piece of equipment for light commercial installations as well as regulated and non-regulated drinking water applications. The Pro Series is suitable for the treatment of private wells, surface water supplies, bores and municipal water. It is a popular UV disinfection solution for regulated small community point-of-entry water treatment systems. They are also widely used in homes, and light commercial applications including day cares, residential care homes, bed & breakfasts, restaurants, small resorts, lodges, and similar facilities. The Pro Series has NSF/ANSI 55 Class A certification.
VIQUA’s LightWise™ technology allows the system’s electronic controller to automatically reduce lamp power during periods of no water flow, reducing the rate of sleeve fouling by up to 60%, and providing estimated energy savings of 30% compared to standard PRO systems. By adjusting the lamp power, water temperature is maintained below 40˚C, and the rate of sleeve fouling is consequently reduced by as much as 60%. This can more than double the amount of time between cleanings in the sleeve cleaning maintenance cycle.
Optional Accessories
COMMcenter: Displays UV dose, alarm history, lamp hours and other performance parameters. Includes dry contact connection for external functionality.

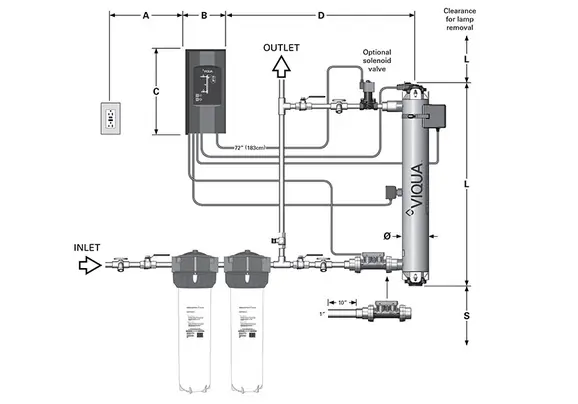

Solenoid Valve: stops the flow of water through the chamber should the UV performance fall below a safe level
Technical Attributes
Connection Size | 1 1/4" MNPT x 1" FNPT COMBO |
Dimensions | 41" x 4" (103 cm x 10 cm) |
Flow Rate | 40mJ/cm2: 30 GPM (113 lpm) (6.8 m3/hr) |
Parameters Treated | Cryptosporidium, Giardia, Rotavirus, E. Coli |
Power Consumption | 230W |
Ship Wt. (lbs) | 31 lbs (14 kg) |
