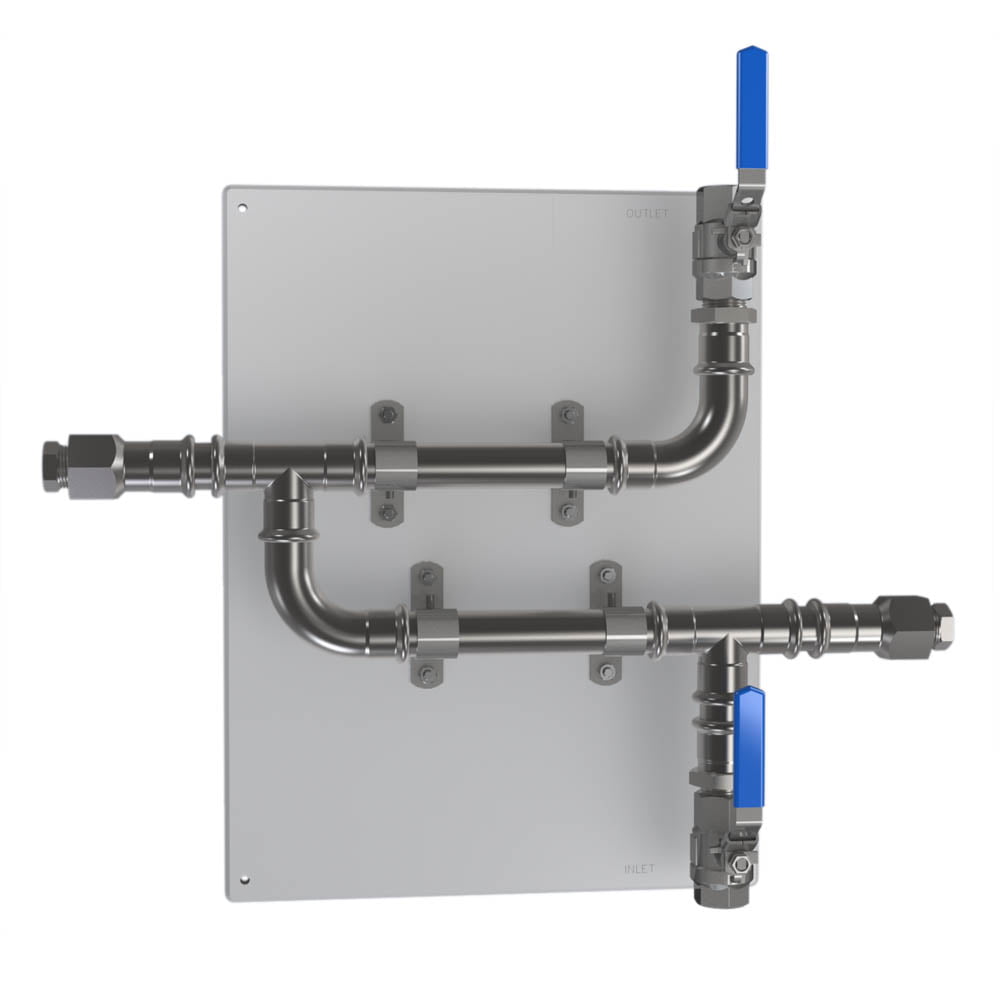

2 PASS 316 SS COUPON RACK 3/4” INCL. 2 X SS COUPON HOLDERS
2 Pass 316 SS Coupon Rack, 20mm (3/4 inch) SS316 Rack & SS isolation valves, max 100°C, 10 bar, mounted on backboard, 3/4” BSPF ports.
- Includes isolation valves for removing coupons and/or regulating flow
- Stainless Steel 316 Construction – 10 Bar Max Pressure at 100°C
- Complete with coupon holders (metal coupons not supplied)
- Direction of water flow always from bolt & nut holding coupon to end of coupon itself – ensures same flow characteristics over all coupons
Configuration |
Wall Mount, PVC Backboard Mounted |
---|---|
Max Pressure / Temp |
10 bar @ 100°C |
Port Size |
3/4" BSP Female |
Materials |
Stainless Steel 316 |
IP Rating |
IP65 |
$2,476.00
Unit price
/
Unavailable
WPRO | SKU:
CR-2C-V-SS316L
