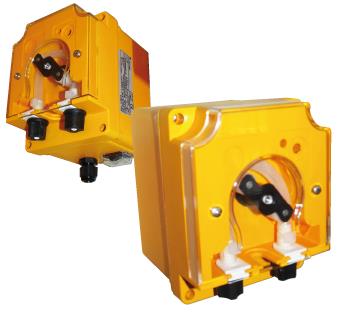

INJECTA NIKE NK.HP PERISTALTIC DOSE PUMP, 1.0 L/HR, 3 BAR, BWALL TUBE, IP 65, ADJUSTABLE OUTPUT 0-100%

• Flow Rate Range: 0.54 to 1.0 L/h (Adjustable via high-resolution trimmer potentiometer)
• Maximum Pressure: 3 bar (43.5 psi)
• Flow Regulation: Variable analog control from 10% to 100%
• Suction/Discharge Connections: Standard 4/6 mm tubing connections

• Housing Material: Fireproof and anti-acid Polypropylene (PP)
• Environmental Rating: IP65 (Dust-tight and protected against water jets)
• Safety Features: Fully protected, covered manual ON/OFF switch
• Status Indicators: Integrated LED for power and operational status tracking

• Power Supply Options: Multi-voltage 100 to 240 Vac (50/60 Hz) no plug supplied.

• Peristaltic Tubing: Heavy-duty, chemically resilient Bwall hose pre-installed
• Suction Kit: Foot filter with integrated non-return weight assembly
• Injection Point: 3/8" Gas / BSP injection valve assembly
• Transfer Lines: 4x6mm PVC suction tubing (clear) and PE discharge tubing (opaque matte)
• Mounting: Quick-install wall bracket hardware included

Download Data Sheet
