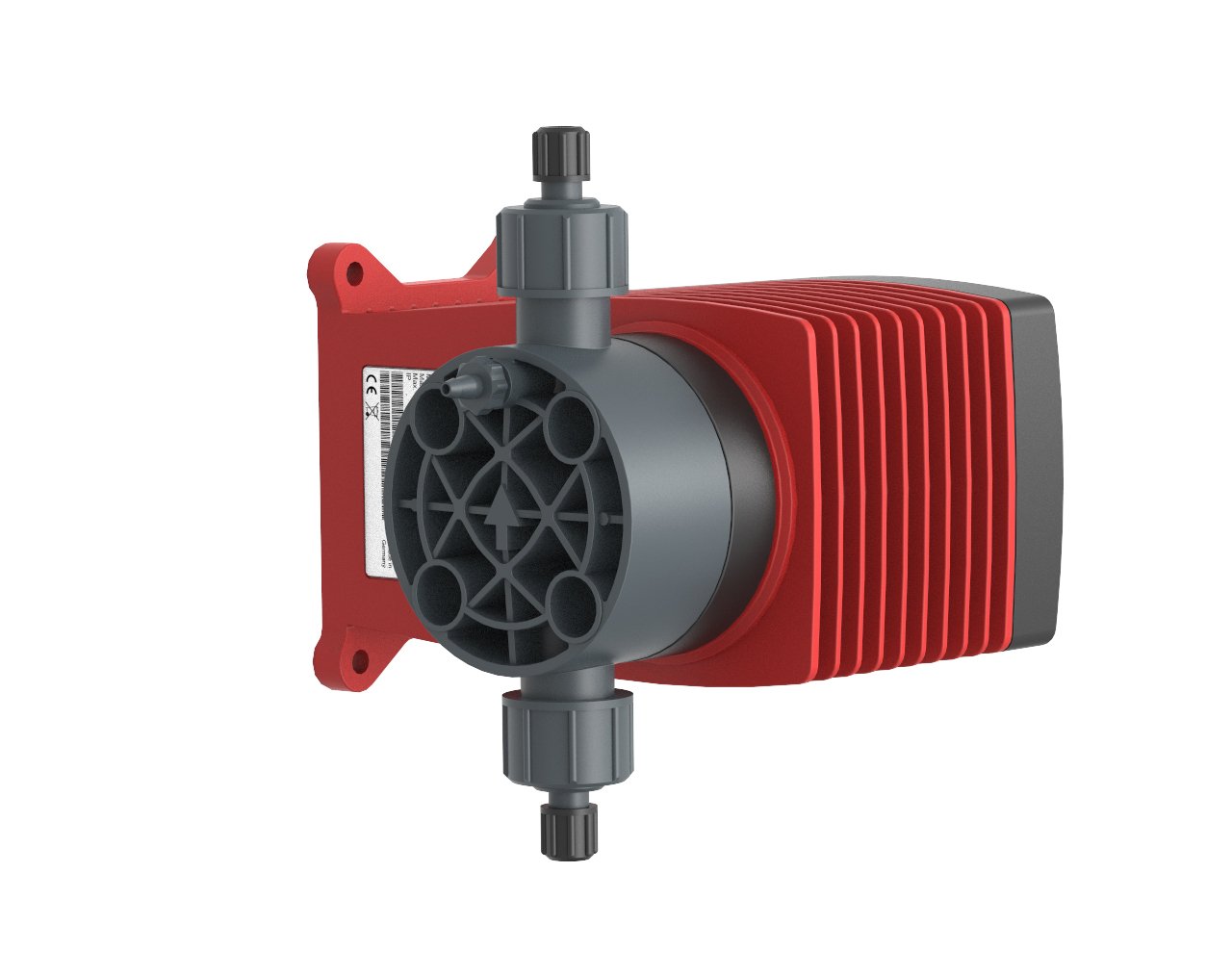

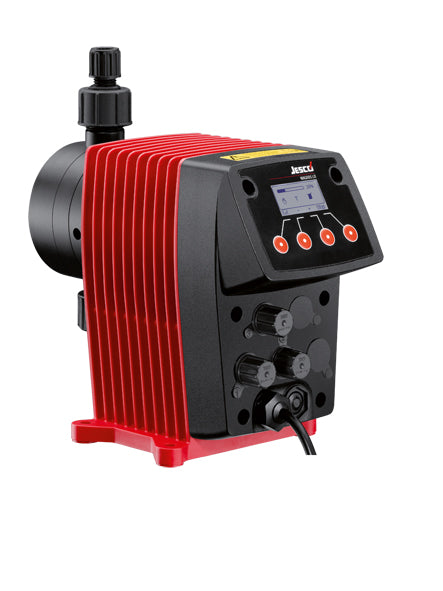

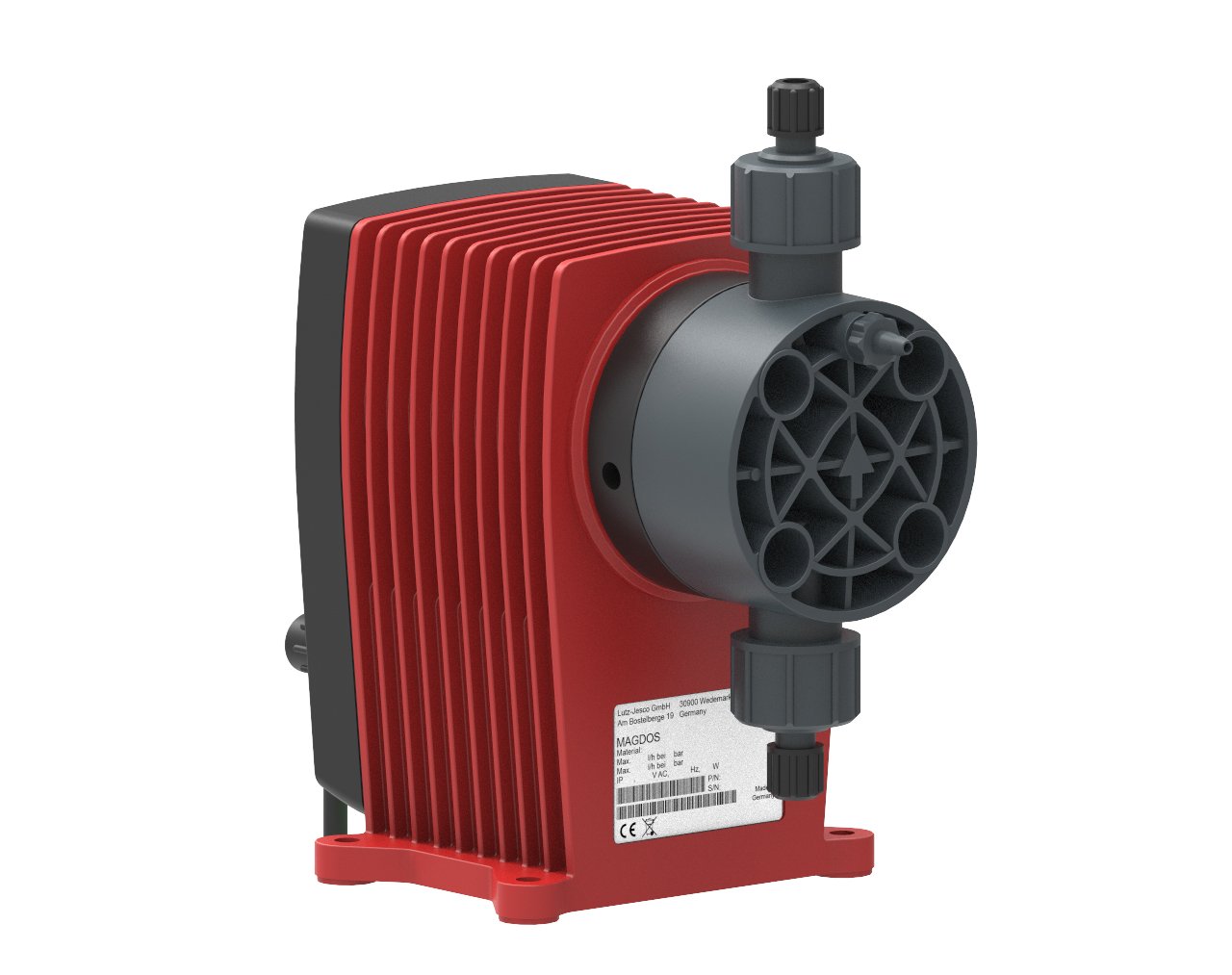

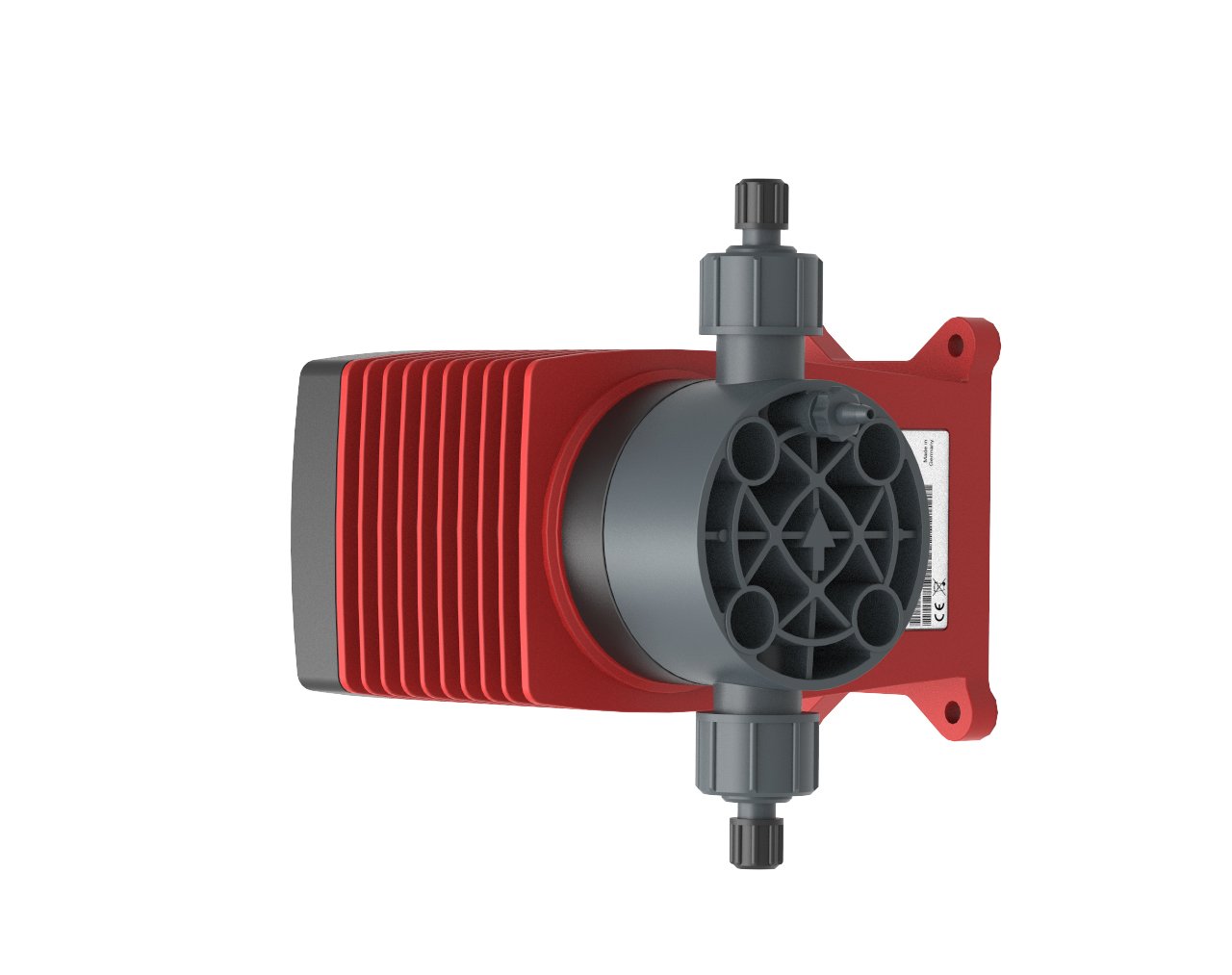

MAGDOS LA Solenoid Diaphragm Dosing Pump
The MAGDOS LA Solenoid Diaphragm Dosing Pump is a great value alternative for simple and continuous dosing tasks. MAGDOS stands for dosing without compromises.
It is especially suitable for water treatment and the process industry. The MAGDOS LA range is available for seven capacity ranges from 0.35 to 13 l/hr, and up to 16 bar delivery pressure (select models).
Double-ball valves ensure accurate dosing. The dosing capacity can be conveniently adjusted continuously from 0 – 100% through the stroke frequency adjuster.
The MAGDOS LA range is a compact and reliable solution for the simplest of dosing applications.
Features:
- Output range from 0.5 – 15 l/h, up to 16 bar
- Power supply 230 V ±10 %, 50/60 Hz, IP65or 115 V ± 10 %, 50/60 Hz
- Dosing head ventilation
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF
- Stroke frequency can be precisely adjusted via the keyboard
- Graphic display
- Analogue Input settable 0/4 – 20 mA
- Level input with early warning and main alarm
- Release input for external start/stop
- CSA and UL certified
For a full list of features please download the Product Datasheet.
For user instructions please please refer to User Manual.
Contact WaterPro for a technical proposal, sizing or expert advice.
