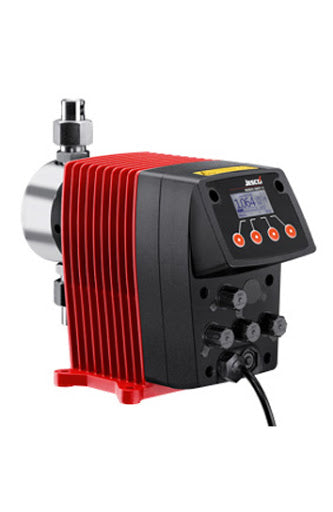

MEMDOS SMART LK Stepper Motor Dose Pump

The Lutz Jesco Memdos Smart LK compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.


The MEMDOS SMART LK series is available in five capacity ranges. The MEMDOS SMART LK's drive is fully adjustable.

  • Capacity range 2.4 – 30.7 l/h, up to 20 bar
  • Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W
  • Microprocessor controlled drive
  • Integrated dosing head venting facility (only MEMDOS SMART LK 2, LK 5 and LK 10 with dosing head made of plastic)
  • Suitable for wall and floor mounting
  • Material finishes PVC, PP, PVDF and stainless steel
  • Stroke frequency can be precisely adjusted via the keyboard
  • Graphic display with multi-language menu
  • Pulse input (increase and reduction)
  • Level input with early warning and main alarm
  • Release input for external start/stop
  • Supply amount displayed in various units
  • Maximum delivery rate can be limited
  • Diaphragm replacement programme
  • One Slow Motion setup possible
  • Stroke feedback output
  • Alarm relay output
  • CSA and UL certified



$1,752.00
Lutz-Jesco  |  SKU: 10103049
Size
Material

Need more information? Flick us a message.

Lutz-Jesco

MEMDOS SMART LK Stepper Motor Dose Pump

From $1,752.00

The Lutz Jesco Memdos Smart LK compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.


The MEMDOS SMART LK series is available in five capacity ranges. The MEMDOS SMART LK's drive is fully adjustable.



Size

  • LK2
  • LK5
  • LK10
  • LK15
  • LK20
  • LK30

Material

  • PVC
  • PP
  • PVDF
  • SS
View product
