Lutz-Jesco  |  SKU: 10101084

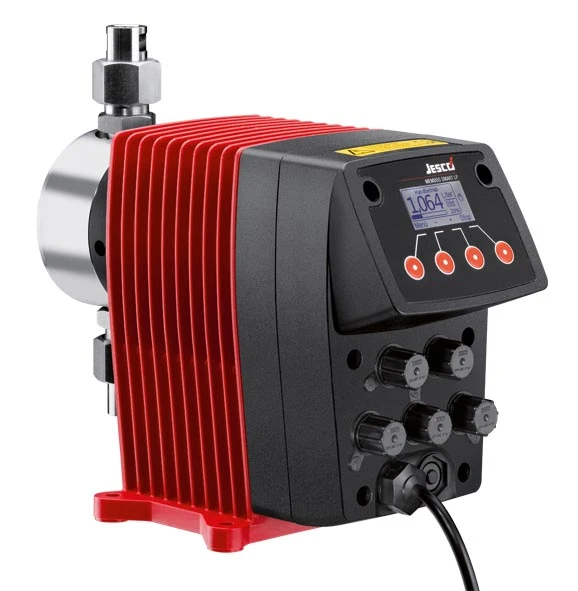

MEMDOS SMART LP Stepper Motor Dose Pump

$2,972.00
Max. Flow/Pressure
Materials

Description

The Lutz Jesco Memdos Smart LP compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.

The MEMDOS SMART LP series is available in five capacity ranges. The MEMDOS SMART LP's drive is fully adjustable. For integration into demanding automation networks, a version with an Ethernet-based MODBUS interface is available.

Capacity range 2.4 – 30.7 l/h, up to 20 bar
Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W
Microprocessor controlled drive
Integrated dosing head venting facility (only MEMDOS SMART LP 2, LP 5 and LP 10 with dosing head made of plastic)
Suitable for wall and floor mounting
Material finishes PVC, PP, PVDF and Stainless Steel
Stroke frequency can be precisely adjusted via the keyboard
Graphic display with multi-language menu
Analogue input and pulse input (increase and reduction)
Level input with early warning and main alarm
Release input for external start/stop
Supply amount displayed in various units
Maximum delivery rate can be limited
Diaphragm replacement programme
2 Slow Motion modes for dosing viscous media
Stroke feedback output
Alarm relay output
Batch dosing with interval and timer functions
Dosing control input
Diaphragm rupture input for leak monitoring
Ethernet interface (optional)
CSA and UL certified

Lutz-Jesco

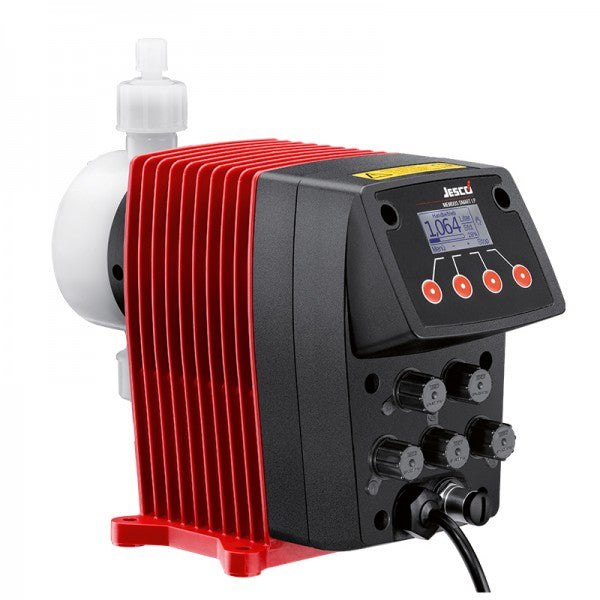

MEMDOS SMART LP Stepper Motor Dose Pump

From $2,972.00

The Lutz Jesco Memdos Smart LP compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.

The MEMDOS SMART LP series is available in five capacity ranges. The MEMDOS SMART LP's drive is fully adjustable. For integration into demanding automation networks, a version with an Ethernet-based MODBUS interface is available.

Capacity range 2.4 – 30.7 l/h, up to 20 bar
Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W
Microprocessor controlled drive
Integrated dosing head venting facility (only MEMDOS SMART LP 2, LP 5 and LP 10 with dosing head made of plastic)
Suitable for wall and floor mounting
Material finishes PVC, PP, PVDF and Stainless Steel
Stroke frequency can be precisely adjusted via the keyboard
Graphic display with multi-language menu
Analogue input and pulse input (increase and reduction)
Level input with early warning and main alarm
Release input for external start/stop
Supply amount displayed in various units
Maximum delivery rate can be limited
Diaphragm replacement programme
2 Slow Motion modes for dosing viscous media
Stroke feedback output
Alarm relay output
Batch dosing with interval and timer functions
Dosing control input
Diaphragm rupture input for leak monitoring
Ethernet interface (optional)
CSA and UL certified

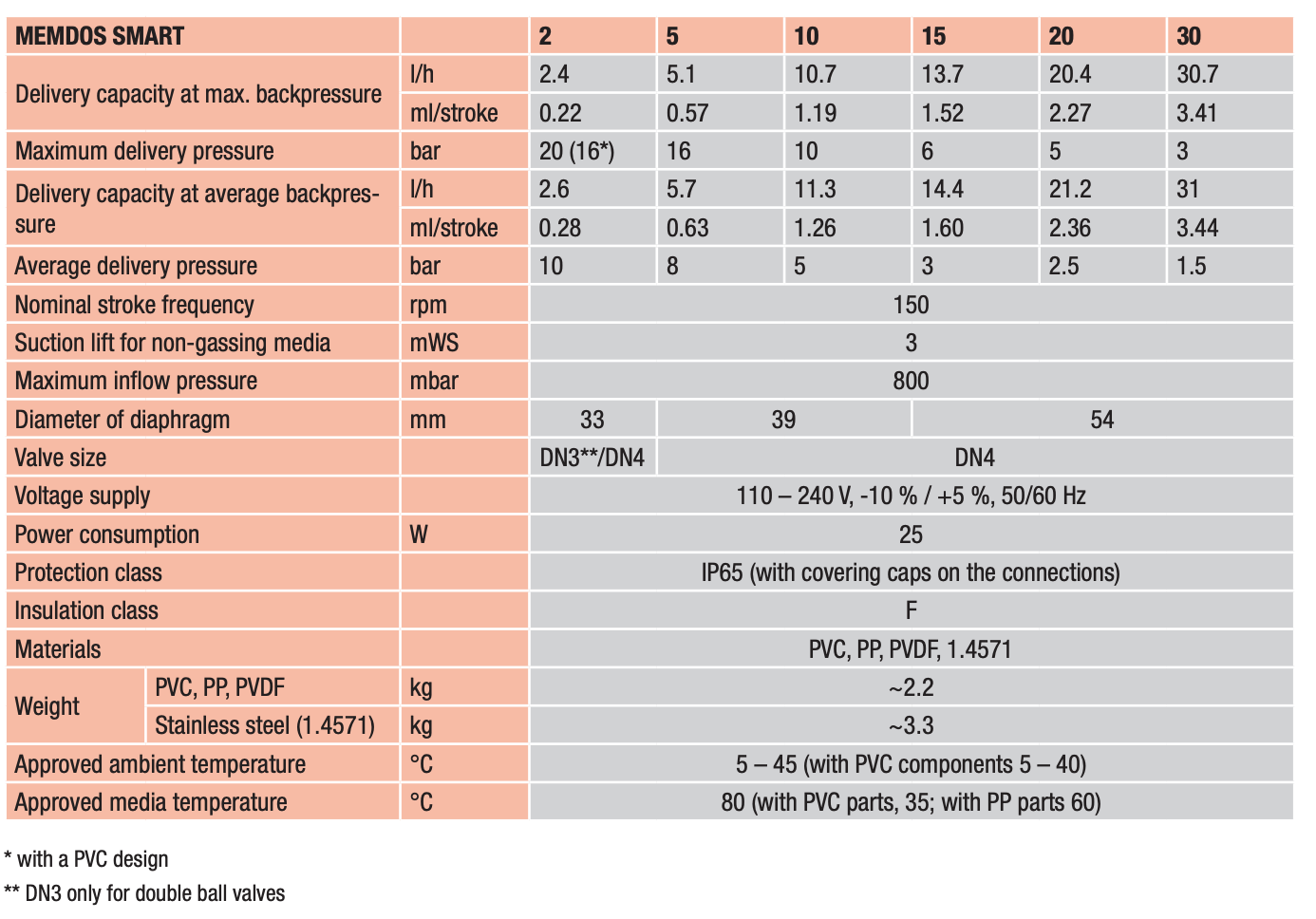

Max. Flow/Pressure

  • LP2 - 2.40 L/H @ 20 Bar
  • LP5 - 5.10 L/H @ 16 Bar
  • LP10 - 10.7 L/H @ 10 Bar
  • LP15 - 13.7 L/H @ 6 Bar
  • LP20 - 20.4 L/H @ 5 Bar
  • LP30 - 30.7 L/H @ 3 Bar

Materials

  • PVC/FPM
  • PVDF/FPM
