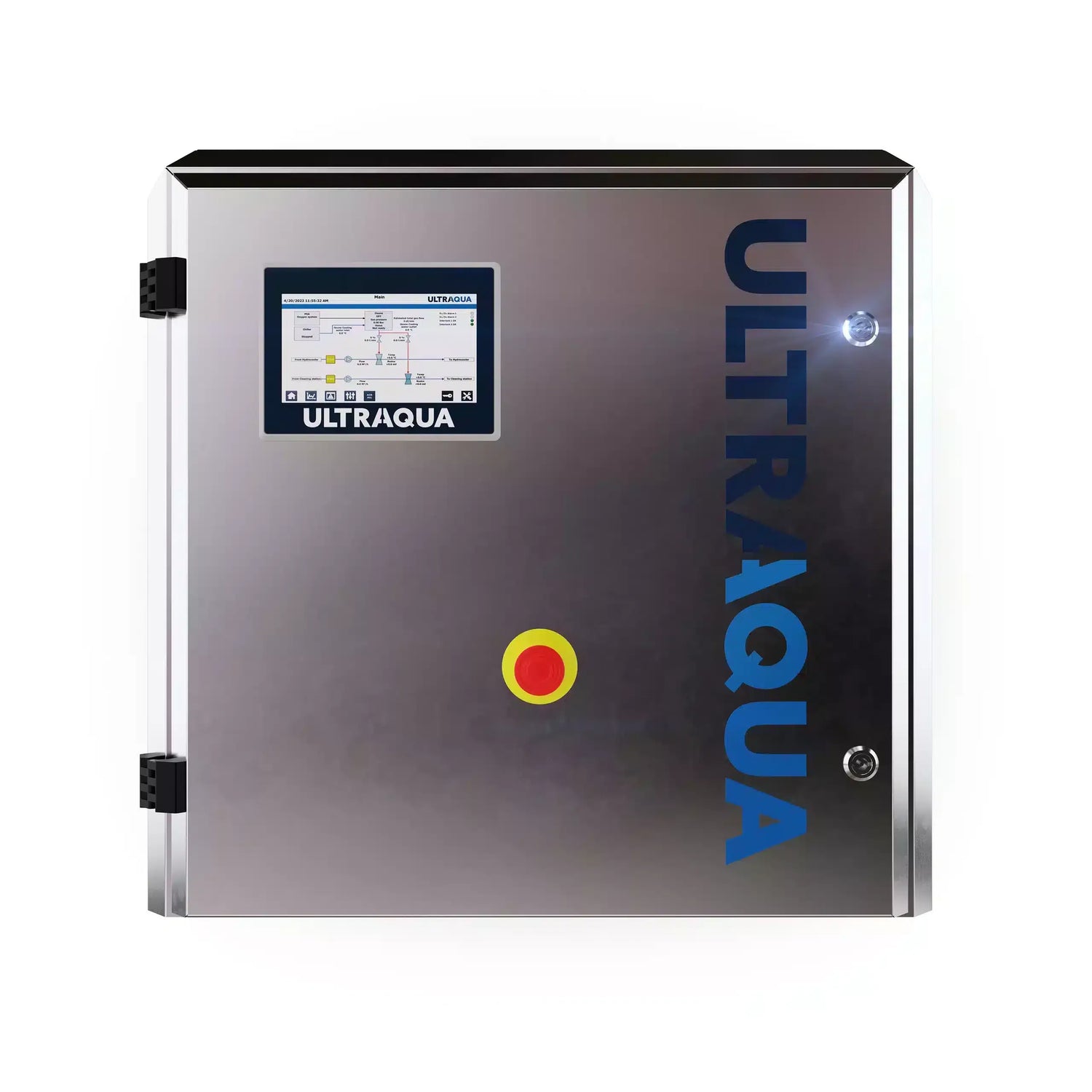

ULTRAQUBE™ SS 1-5 Series Ozone Systems
Compact. Modular. Industrial Grade.
The ULTRAQUBE™ SS (1-5) is a high-concentration ozone generator engineered specifically for municipal and industrial water treatment. Built with premium Stainless Steel (316L), this series offers a unique "modular inverter" design that allows your disinfection capacity to grow alongside your facility—without the need for expensive infrastructure overhauls.
Key Advantages for Industrial Facilities
Elite Energy Efficiency: Operates at market-leading efficiency levels of <8.5 kWh per kg O3, significantly reducing long-term operational expenditure (OPEX).

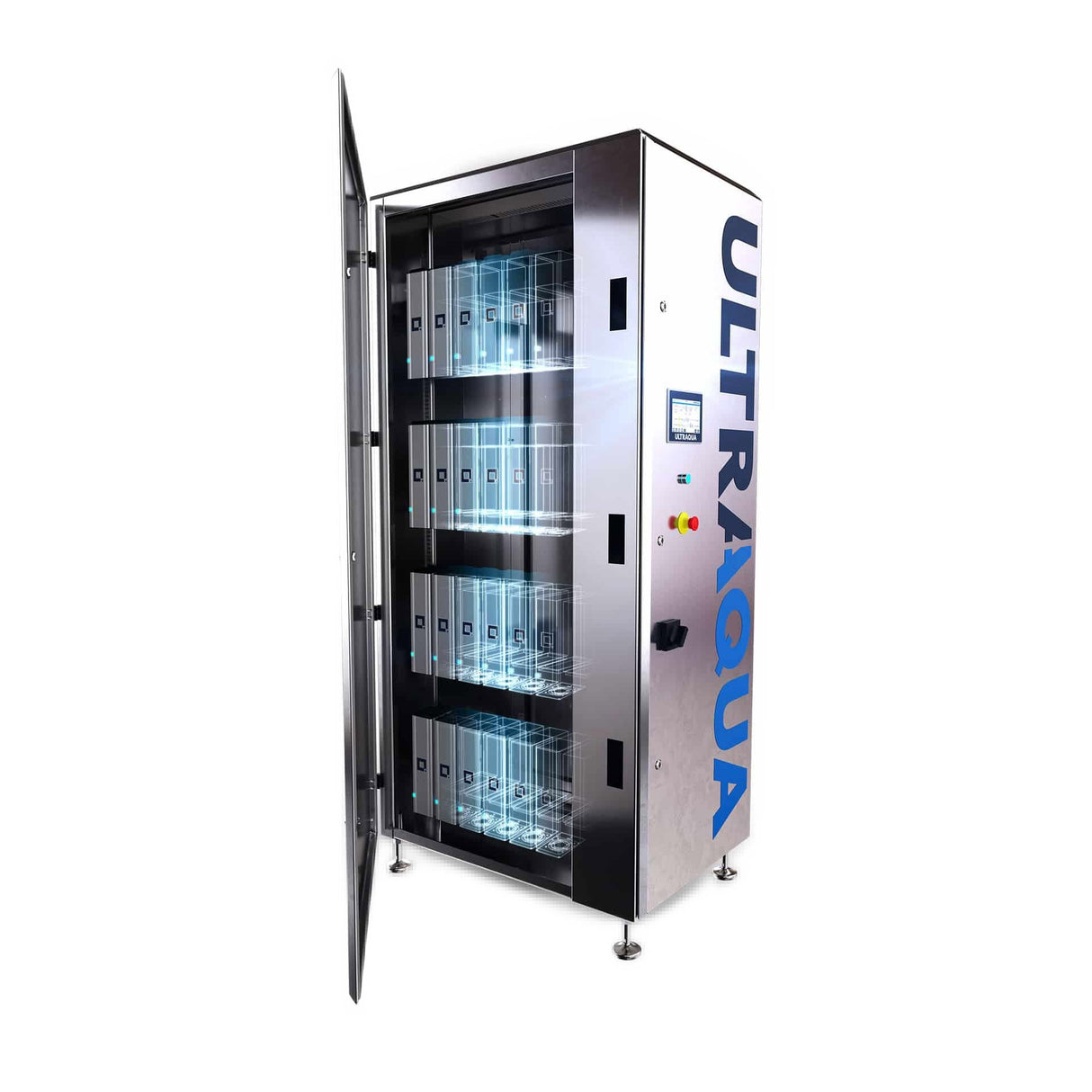

True Scalability: Each system is designed as a "scalable concept." Start with a base module producing 88g O3/h and easily integrate up to 5 modules (totaling 440g O3/h) as your demand increases.
High-Concentration Output: Delivers optimized ozone concentrations ranging from 9–20 wt%, ensuring superior gas-to-liquid mass transfer and more efficient oxidation.

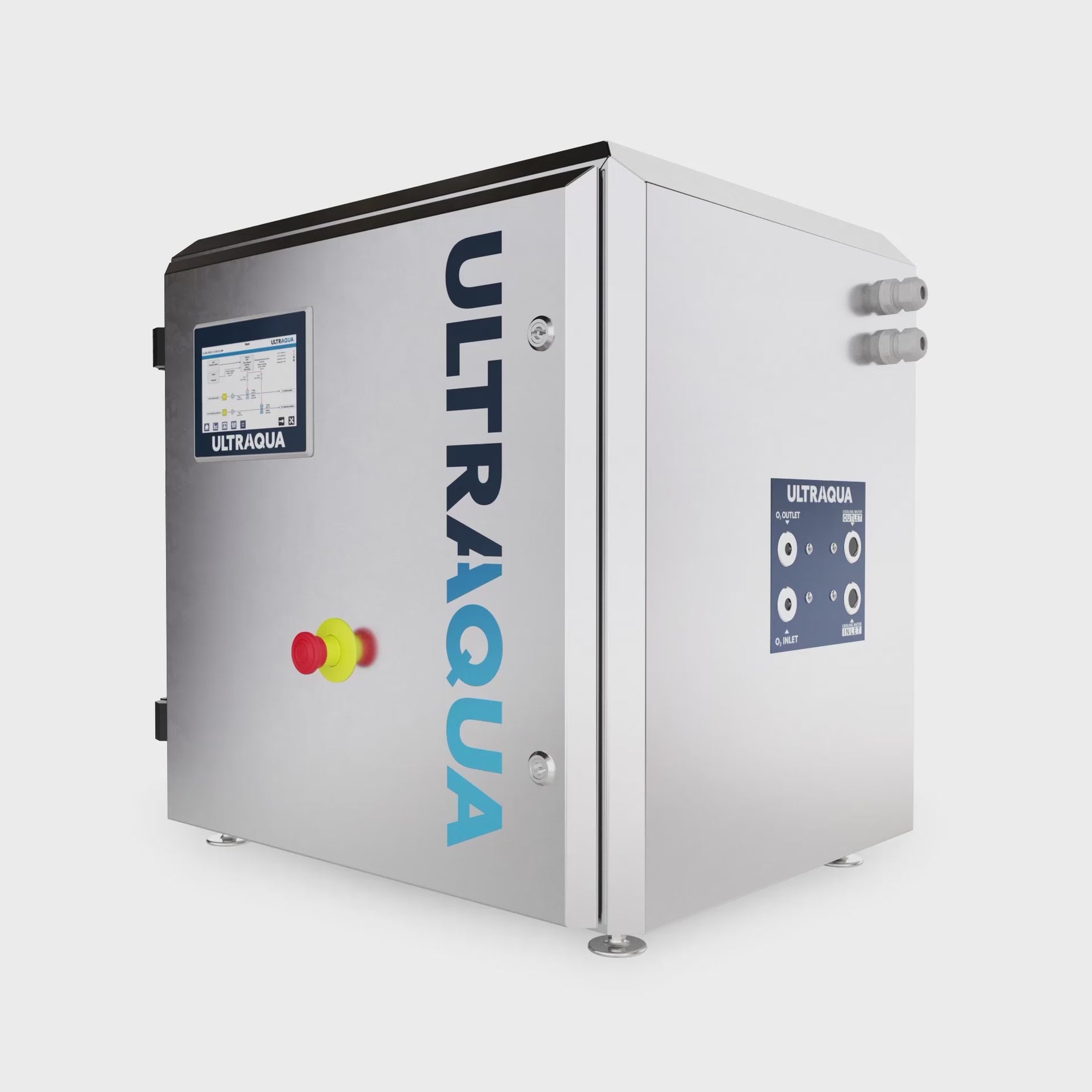

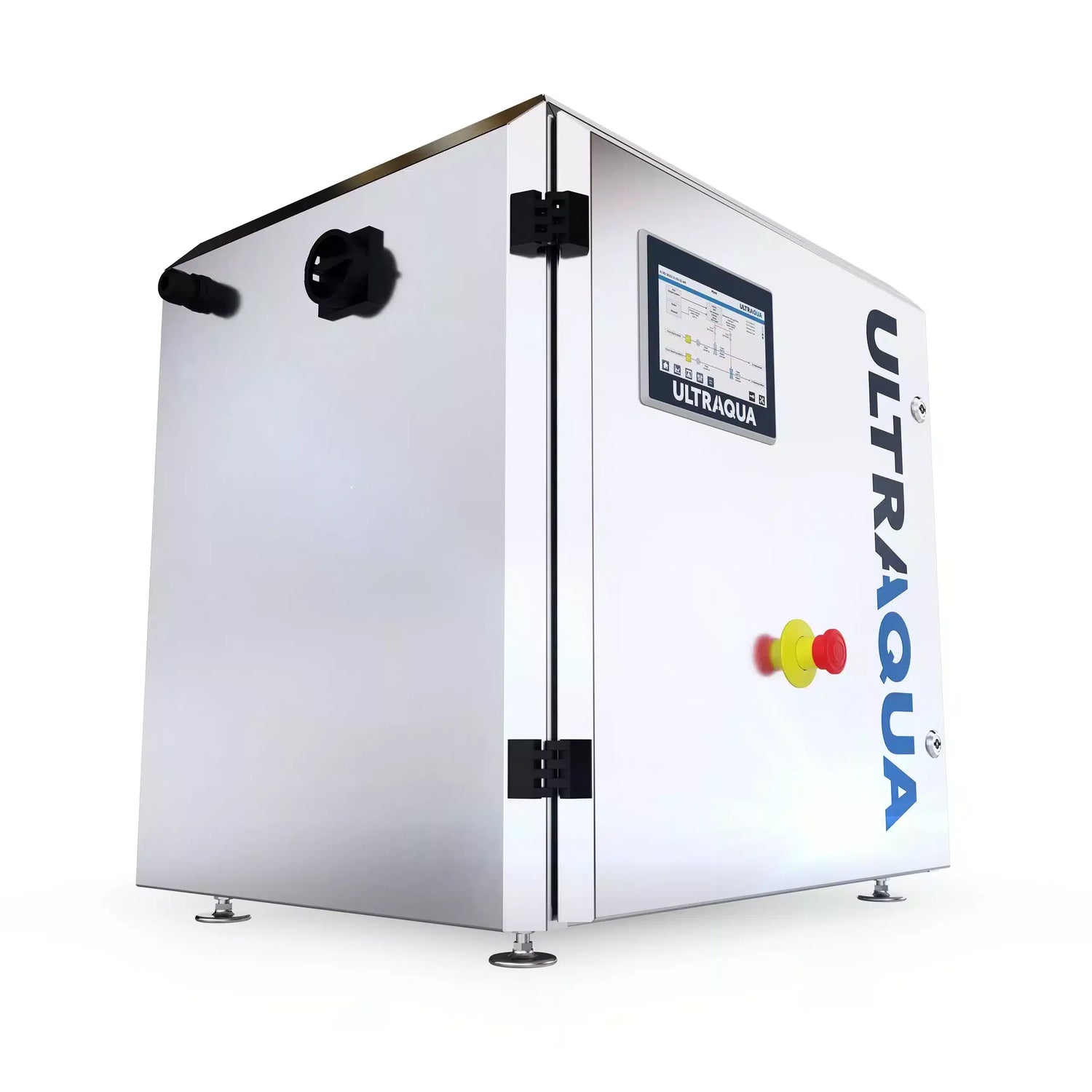

Robust 316L Construction: The SS series is housed in a durable, industrial-grade stainless steel enclosure, providing maximum protection in demanding environments.

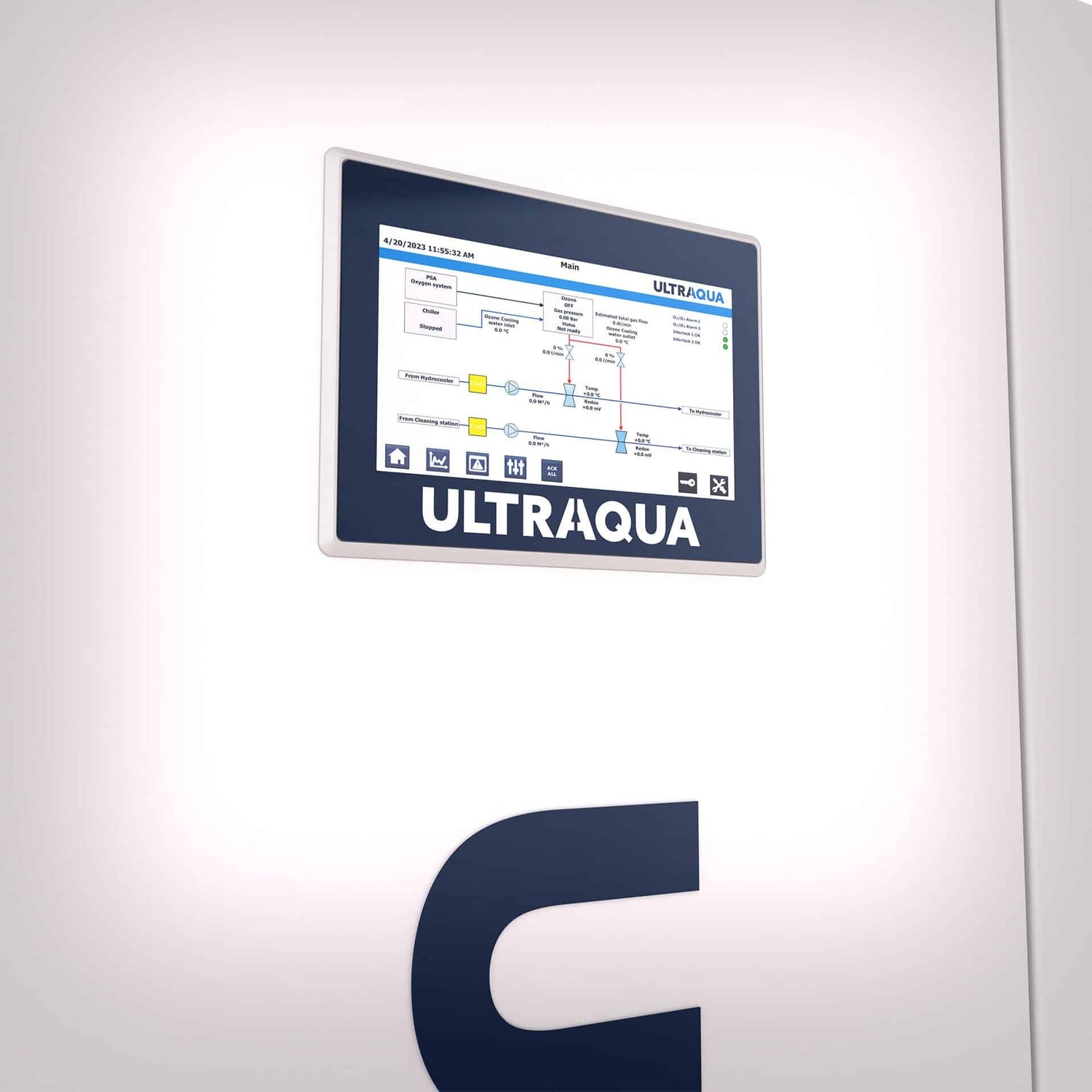

Plug-and-Play Integration: Its compact footprint and integrated monitoring systems allow for seamless installation into existing water treatment skids or complex environments.
Advanced Features & Safety
Integrated Reactor Cooling: Minimizes energy loss and protects component longevity.
Automated Operational Safety: Equipped with automated gas shut-off valves and continuous monitoring to ensure a safe working environment.
Easy Maintenance: Designed for accessibility, allowing for rapid servicing and minimal system downtime.
Chemical-Free Technology: Ozone decomposes back into oxygen, leaving zero chemical residues and eliminating the need for hazardous chemical storage.
Technical Specifications (SS 1-5 Series)
| Feature | Specification |
| Ozone Capacity | 88 g/h – 440 g/h |
| Ozone Concentration | 140 - 300 gr/Nm³ (9 - 20 wt%) |
| Material | Stainless Steel (SS) 316L |
| Control Range | 20% - 100% |
| Energy Consumption | < 8.5 kWh/kg O3 |
| Ingress Protection | IP65 |
| Communication | Modbus TCP / Siemens or Beijer Control |
The ULTRAQUBE™ SS is the ideal choice for:
- Municipal Wastewater: Removing micropollutants and pathogens.
- Industrial Process Water: Disinfecting cooling towers and process loops.
- Food & Beverage: Chemical-free sanitation of rinse water.
- Landfill Leachate: Oxidizing complex organic contaminants.
